SPIRAL STAIRCASES

DOLLE have been supplying staircases globally for over 50 years, here you can view our wide range of spiral staircases and landing banisters to match. Our modern Scandinavian-inspired designs, finished in high quality materials and you can choose from a range of modern colours.

Sort by switch-vertical

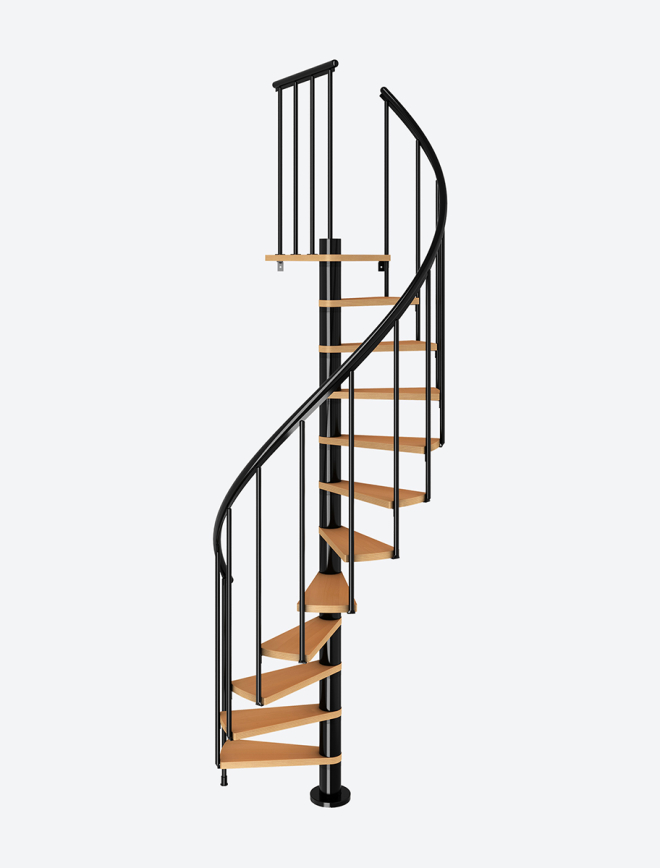

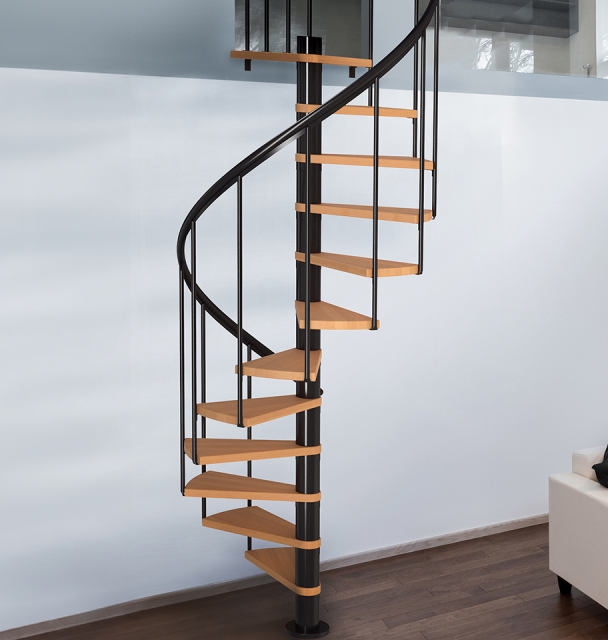

  • Spiral staircase MONTREAL Spiral staircase MONTREAL
    Max. height 357 cm
    Diameter 120, 140 & 160 cm
    Tread Beech/Oak
  • Spiral staircase CALGARY
    Max. height 280 cm
    Diameter 120 & 140 cm
    Tread Beech veneer
  •  Black, RAL 9005  Black, RAL 9005
    Floor-to-floor height 265.2 - 304.2 cm
    Colour of structure Black - RAL 9005

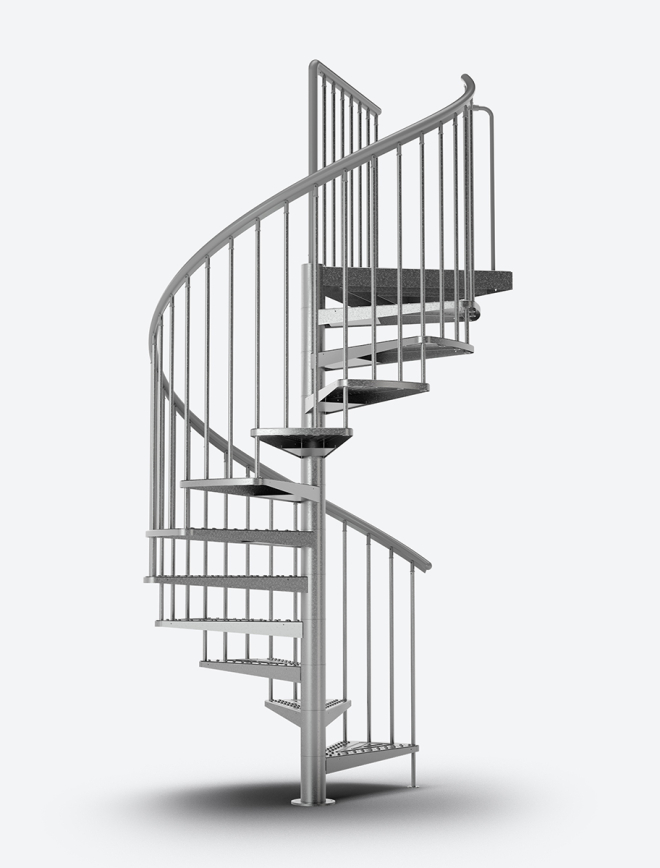

  • Spiral staircase DOLLE TORONTO Spiral staircase DOLLE TORONTO
    Max. height 399,5 cm
    Diameter 125, 155 & 185 cm
    Tread Galvanized steel

4 Items


Drawing with Spiral staircases with distance inbetween balusters Drawing with Spiral staircases with distance inbetween balusters

Installing Spiral Staircases

When installing a spiral staircase from one floor to another, such as from a hallway to bedrooms or bathrooms, it is crucial to ensure compliance with certain building regulations. These regulations vary by country but often include specific safety measures. One of the primary rules is the 100 mm gap rule, which dictates that the space between balusters or individual treads should not exceed 100 mm. This is to prevent accidents. In this case Montreal Classic 4 & 5 are relevant.

A Stylish and Functional Spiral staircase

The MONTREAL Classic 4 & 5 spiral staircases are designed for access to inhabited spaces. These staircases are not only functional and space saving, but they are also aesthetically pleasing, serving as a sculptural element within a room that enhances a home's infrastructure. Key features of the MONTREAL Classic series include solid treads in beautiful oak and beech.

White landing banister at stairway with spiral staircase White landing banister at stairway with spiral staircase
Black Spiral staircase in living room provides access upstairs Black Spiral staircase in living room provides access upstairs

Secondary Spiral Staircases: Solutions for Non-Habitable Spaces

For access to non-habitable spaces such as lofts, offices, loft conversions, playrooms, or mezzanine floors, a simpler spiral staircase can be installed. These areas are typically considered temporary access spaces, so the stringent regulations for habitable areas do not apply. The following spiral staircases are suitable for such purposes:



  • CALGARY - a basic model designed for practicality and ease of installation.
  • MONTREAL Classic 2 & 3: Similar to higher-end models but with features tailored to non-habitable spaces, making them a cost-effective and functional choice.

When planning to install a spiral staircase, consider the following:

  • Ensure that the chosen staircase model meets all local building regulations and safety regulations.
  • Measure the available space accurately to choose a staircase that fits well without compromising safety or accessibility.
  • Determine whether the staircase is for habitable or non-habitable spaces, as this will influence the choice of model and design. For habitable spaces, spiral staircases offer a stylish and space-efficient solution, but you need to make sure compliance with local safety regulations.
Grey DOLLE spiral staircase in living room Grey DOLLE spiral staircase in living room
