Loft ladder clickFIX® 76 G Vario made to measure

Loft ladder especially design for high ceilings up to 4.15 meter

The loft ladder DOLLE clickFIX® 76G vario offers a high degree of variability. Developed to reach a maximum ceiling height of 415 cm. The concertina ladder can easily be extended and pushed together. As part of the DOLLE clickFIX® family, DOLLE clickFIX® vario meets all the requirements for safety and comfort, the greatest possible thermal insulation and quick and easy installation.



LOFT LADDER MADE TO MEASURE IS EASY TO INSTAL THANKS TO clickFIX® TECHNOLOGY

The patented articulated lever in the hatch box of all DOLLE clickFIX® models allows assembly without tools and impresses with its excellent adjustability between lever and bolt plate. The lever is simply pushed onto the bolt plate, turned around and cannot be released again afterwards.



HIGH QUALITY LOFT LADDER

The 76 mm thick trapdoor of the DOLLE clickFIX® vario keeps heat efficiently in the living room. DOLLE clickFIX® vario has a component-tested U-value of 0.49 W / m² · K, tested by ift Rosenheim.

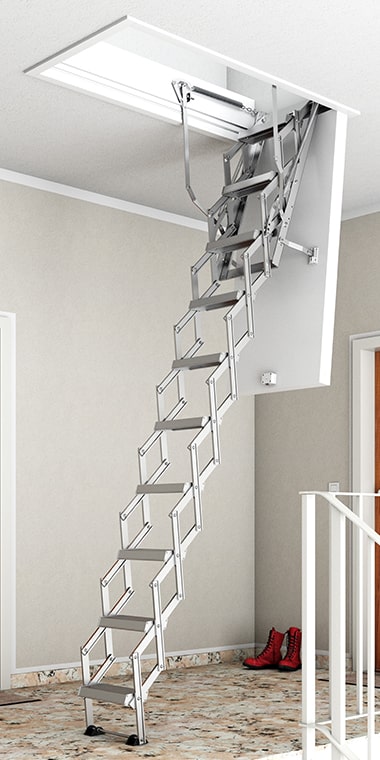

loft ladder made to measure clickfic 76 g vario

Specifications



Product number 1041600 - made to measure
Outside casing 87.5 - 157.5 × 57.6 - 97.6 cm*
Opening size 90 - 160 × 60 - 100 cm
Floor-to-ceiling height 238.4 - 415.2 cm**
Casing height 24 - 80 cm
Type concertina ladder
Tested u-value 0,49 W/(m2K)
Insulation 70 mm expanded polystyrene (EPS)
Maximum load 150 kg, EN 14975
Air tightness Class 4, EN 12207

*   The outside casing length and width must not exceed a total of 255.1 cm.
** Casing length 87.5 - 107.4 only 9 treads – ceiling height 238.4 - 265.3 cm.
    Casing length 107.5 - 157.5 – 9 to 14 treads – ceiling height 238.4 to 415.2 cm.

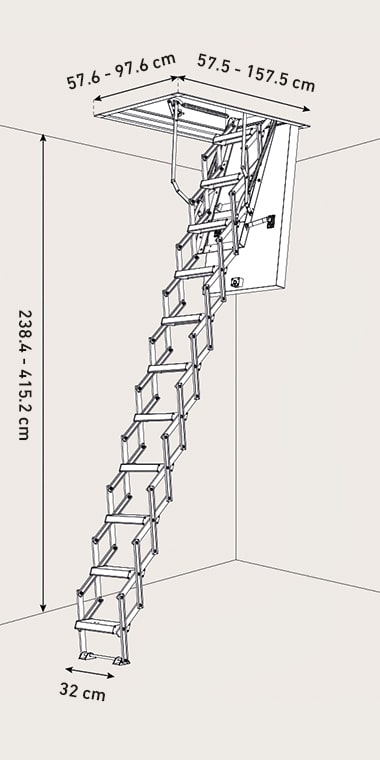

technical drawing for clickfix 76 g vario
